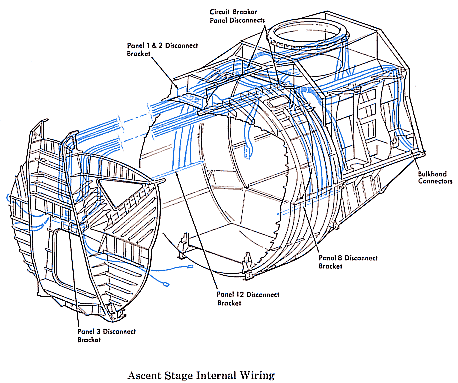

Ascent Stage Internal Wiring (EPS)

Included in the Electrical Power Subsystem are all the electrical harness and cable assemblies on the Lunar Module. The Ascent Stage has approximately 20 major electrical harnesses and 60 electrical cable assemblies. Shown are the internal wiring.
